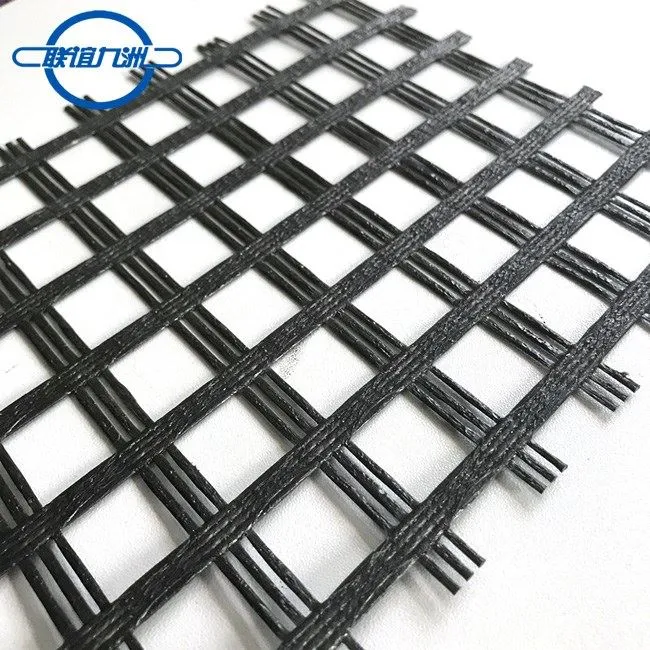

Warp Knitted Polyester Geogrid

Qhov geogrid no yog tsim los ntawm polyester yarns uas muaj lub siab molecular hnyav thiab zoo heev tensile zog. Cov yarns yog ces knitted rau hauv ib tug dimensionally ruaj khov network ntawm apertures los tsim geometric daim phiaj duab uas muaj tensile reinforcement rau av.

Hauj lwm lawm

Kev tsis

Khoom Taw Qhia:

Polyester Geogrid txais lub zog siab, siab modulus, thiab qis shrinkage twisting muaj polyester fiber li raw khoom. Nws yog warp knitted nrog oriented qauv thiab nyob rau hauv qhov xwm ntawm tsis muaj dabtsi yog khoov ntawm warp thiab weft kev taw qhia. Nws cov ntsiab lus hla yog bundled thiab khoov ua ke los ntawm lub zog siab ntev polyester fiber ntau sib sau ua ke tawv. Tom qab ntawd nws ua rau cov khoom mesh loj tom qab coated nrog cov roj zoo los yog dej soluble PVC uas txhim kho nws lub zog, ntau yam txheej txheem thev naus laus zis thiab muab kev ua si tag nrho ntawm nws cov cuab yeej cuab tam.

Specification:

Polyester Biaxial Geogrid

Khoom		Txoj Kev Xeem	PET 30-30	PET 50-50	PET 80-80	PET 100-100	PET 120-120	PET 150-150	PET 200-200
Ulimate tensile zog (kn / m)	MD	EN ISO 10319 Kev Tswj Xyuas Kev Lag Luam	30	50	80	100	120	150	200
	CD		30	50	80	100	120	150	200
Elongation ntawm max load (%)	MD		13
	CD		13
Mesh Loj (mm)		12-50
Roll dav (m)		1-6
Roll length (m)		50-200

Polyester Uniaxial Geogrid

Khoom		Txoj Kev Xeem	PET 60-30	PET 80-30	PET 100-30	PET 120-30	PET 150-30	PET 180-30	PET 200-30
Ulimate tensile zog (kn / m)	MD	EN ISO 10319 Kev Tswj Xyuas Kev Lag Luam	60	80	100	120	150	180	200
	CD		30	30	30	30	30	30	30
Elongation ntawm max load (%)	MD		13
	CD		13
Mesh Loj (mm)		12-50
Roll dav (m)		1-6
Roll length (m)		50-200

Cov txiaj ntsig:

• Cov khoom zoo thiab kev ua haujlwm ntev ntev los xyuas kom meej cov qauv kev pab cuam lub neej
• Kev siv tshuab ua haujlwm siab kom tsis txhob muaj kev puas tsuaj thaum tsim kho
• Yooj yim thiab ceev installation kom txo tau lub sij hawm tsim kho thiab cov nqi
• Tus nqi siab

Khoom siv:

Txoj Kev Loj, Railway, Tshav Dav Hlau, Retaining Phab Ntsa, Txoj Kev Hauv Nroog, Txoj Kev Loj Hlob

image003(001)

Cim npe nrov: warp knitted polyester geogrid, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, nqe
